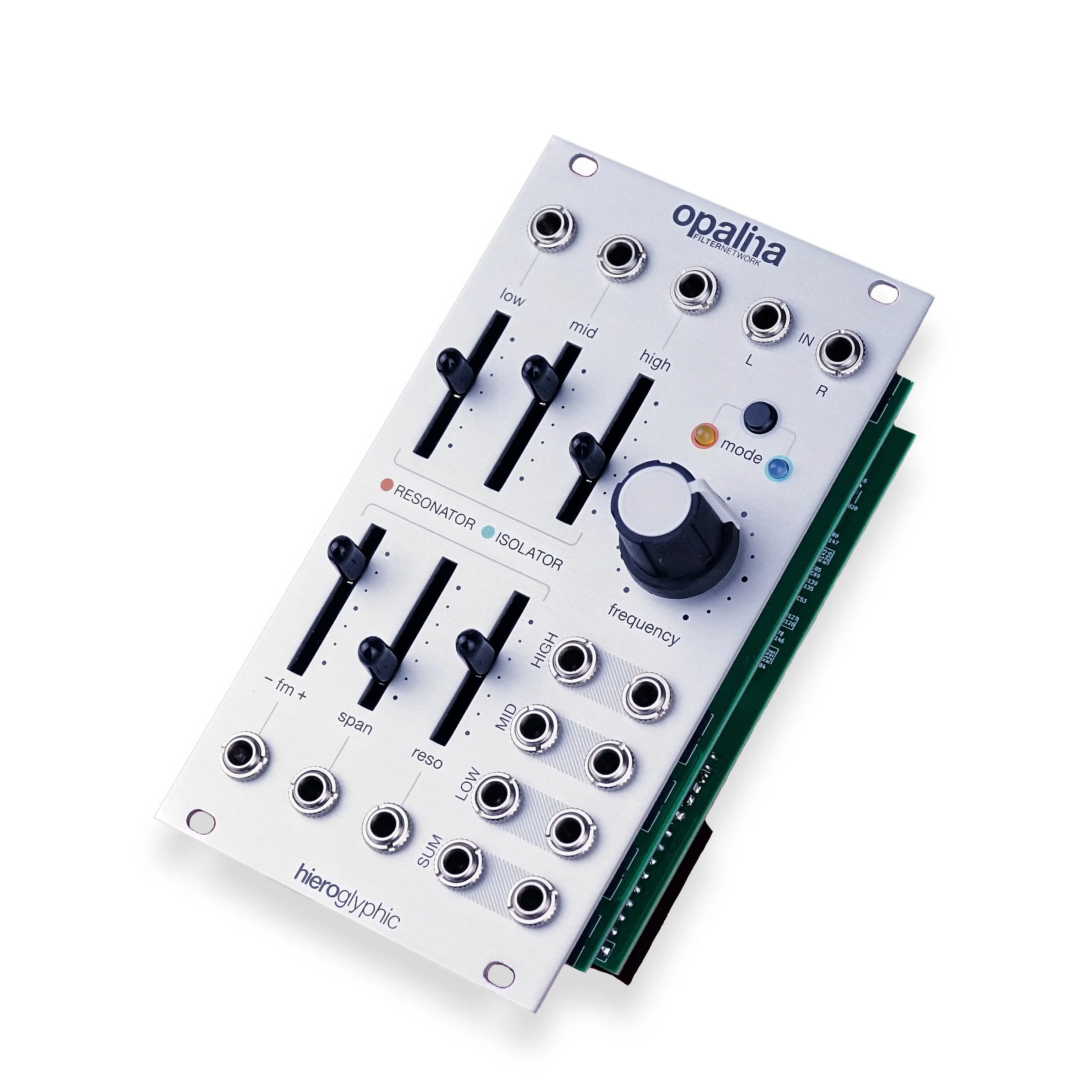

Opalina

Stereo state-variable filter networks configurable in two modes. RESONATOR is a triple bandpass alignment, emphasizing resonant peaks and formants. ISOLATOR is a cascaded state-variable topology with variable mid-bandwidth for use as resonant crossover.

  • · RESONATOR: triple bandpass filters with vc peak span and resonance. 12db/oct filter slopes.

    · ISOLATOR: cascaded state-variable filters with vc bandwidth and resonance. 24db/oct filter slopes.

    · Completely analog signal path.

    · Individual band inputs and outputs.

    · Continuously variable band input amplitude.

    · Soft-clipping circuit on SUM output.

    · Dual channel for use in stereo (L & R).

  • ·Width: 14hp

    ·Depth: 35mm

    ·Power consumption: +12v 95mA /-12v 95mA

  • ·User Manual

    ·Modulargrid

€290.00

(Price excludes VAT.)
